Veeam Fast Clone Space Savings Script

#working directory
$workingDir = "Path to working directory"

function Authenticate-Repo
{
    [cmdletbinding()]
    param(
        [Parameter(Mandatory, ValueFromPipeline)]
        [boolean]$prompt
    )
    begin
    {
        if ($prompt -eq $false)
        {
            $credential = Import-CliXml -Path "Path to xml credentials file" #get credentials to connect to backup repository
        }
        elseif ($prompt -eq $true)
        {
            $credential = Get-Credential -Message "Enter credentials with admin privileges to Veeam repository servers"
        }
    }
    end
    {
        return $credential
    }
}

Function Repo-Servers
{
    [CmdletBinding()]
    param()
    Process
    {
        #list of repository servers to process
        $repoServers =
        "repository1",
        "repository2"
    }
    End
    {
        return $repoServers
    }
}

Function Initial-Setup
{
    [CmdletBinding()]
    param(
        [Parameter(Mandatory, ValueFromPipeline)]
        $serverList
    )
    Begin
    {
        $global:dir = "Path to blockstat directory on backup repository"
        [hashtable]$setupArray = @{}
        $setupArray.dir = $dir
        $connectionTestArray = @()
    }
    Process
    {
        foreach ($serverListLoop in $serverList)
        {
            #check if remote powershell port is open on repo
            $connectionTest = Test-NetConnection -ComputerName $serverListLoop -CommonTCPPort WINRM -WarningVariable TcpError
            #add any netconnection warnings to variable for later
            $connectionTest | Add-Member -MemberType NoteProperty -Name "TcpError" -Value "$TcpError"

            #open session to repo if connection was successful, copy blockstat tool and create directories
            if ($connectionTest.TcpTestSucceeded -eq $true)
            {
                #use supplied credentials to open session
                try
                {
                    $session = New-PSSession -ComputerName $connectionTest.ComputerName -Credential $credentials -ErrorVariable sessionError -ErrorAction Stop
                    #add session connection result and any warnings to variable for later
                    $connectionTest | Add-Member -MemberType NoteProperty -Name "sessionTestSucceeded" -Value $true
                    $connectionTest | Add-Member -MemberType NoteProperty -Name "sessionError" -Value $null


                    $createDir = Invoke-Command -Session $session -Scriptblock {
                        if (-not(Test-Path -Path $using:dir))
                        {
                            New-Item -Path "$using:dir\logs" -ItemType Directory
                        }
                        else
                        {
                            Remove-Item -Path "$using:dir\logs\*" -Recurse
                        }
                    }
                    if ($createDir -ne $null)
                    {
                        $copy = Copy-Item –Path "$workingDir\blockstat.exe" –Destination "$dir" -ToSession $session
                    }

                    #remove session
                    Get-PSSession | Remove-PSSession
                }
                catch
                {
                    #add session connection result and any warnings to variable for later
                    $connectionTest | Add-Member -MemberType NoteProperty -Name "sessionTestSucceeded" -Value $false
                    $sessionErrorReplace = $sessionError.Message -replace 'The running command stopped because the preference variable "ErrorActionPreference" or common parameter is set to Stop: ', ''
                    $connectionTest | Add-Member -MemberType NoteProperty -Name "sessionError" -Value $sessionErrorReplace
                }
            }
            #store results in array
            $connectionTestArray += $connectionTest
        }
        #add results to repo hashtable
        $setupArray.repo = $connectionTestArray
    }
    end
    {
        return $setupArray
    }
}

function Format-Size() {
    [CmdletBinding()]
    param(
        [Parameter(Mandatory, ValueFromPipeline)]
        [double]$SizeInBytes
    )
    process
    {
        #convert byte value to readable storage unit
        switch ([math]::Max($SizeInBytes, 0)) {
            {$_ -ge 1PB} {"{0:N2} PB" -f ($SizeInBytes / 1PB); break}
            {$_ -ge 1TB} {"{0:N2} TB" -f ($SizeInBytes / 1TB); break}
            {$_ -ge 1GB} {"{0:N2} GB" -f ($SizeInBytes / 1GB); break}
            {$_ -ge 1MB} {"{0:N2} MB" -f ($SizeInBytes / 1MB); break}
            {$_ -ge 1KB} {"{0:N2} KB" -f ($SizeInBytes / 1KB); break}
            default {"$SizeInBytes Bytes"}
        }
    }
}

function Refs-Savings
{
    [cmdletbinding()]
    #function accepts optional parameters
    param(
        [Parameter(ValueFromPipeline)]
        [string]$server,
        [string]$volume,
        [int]$folders,
        [string]$email
    )
    begin
    {
        #check if verbose switch was used with function and save for later
        if ($VerbosePreference -eq "Continue")
        {
            #verbose switch used
            $verbosePreferenceSession = "Continue"
        }
        else
        {
            $verbosePreferenceSession = "SilentlyContinue"
        }

        #use repo list in repo-servers function if server parameter not used
        if ($server)
        {
            $serverList = $server
        }
        else
        {
            $serverList = Repo-Servers
        }

        #get repos ready to use blockstat tool
        $setup = Initial-Setup -serverList $serverList

        $refs = @()
    }
    process
    {
        foreach ($repoLoop in $setup.repo)
        {
            "&&&&&&" | Write-Verbose
            $repoLoop | select * | Out-String | Write-Verbose
            "&&&&&&" | Write-Verbose

            #open session to repo if both tcp and session connections were successful
            if ($repoLoop.TcpTestSucceeded -eq $true -and $repoLoop.sessionTestSucceeded -eq $true)
            {
                $session = New-PSSession -ComputerName $repoLoop.ComputerName -Credential $credentials

                $refs += Invoke-Command -Session $session -Scriptblock {

                    #get all refs volumes if volume parameter not used
                    if ($using:volume)
                    {
                        $getVols = (Get-Volume | Where-Object {$_.FileSystem -eq "ReFS" -and $_.DriveLetter -eq $using:volume})
                    }
                    else
                    {
                        $getVols = (Get-Volume | Where-Object {$_.FileSystem -eq "ReFS"} | Sort -Property DriveLetter)
                    }

                    #set repo session to same verbose state as user set in function - verbose messages will not appear within a scriptblock without this set
                    $VerbosePreference = $using:verbosePreferenceSession

                    #only run blockstat tool if refs volumes returned
                    if ($getVols -ne $null)
                    {
                        foreach ($driveLetter in $getVols.DriveLetter)
                        {
                            New-Item -Path "$using:dir\logs\$driveLetter" -ItemType Directory | Out-Null
                            $backupPath = "$($driveLetter):\Backups"
                            "######" | Write-Verbose
                            $driveLetter | Write-Verbose
                            "######" | Write-Verbose
                            #return list of all veeam related backup files
                            $fileList = Get-ChildItem -Path $backupPath -Include @("*.vbk"; "*.vib"; "*.vbm"; "*.vsm"; "*.vlm"; "*.vlb") -Recurse | Where-Object {$_.FullName -notlike "$backupPath\ArchiveIndex\*"} | Group-Object DirectoryName

                            #used for testing when folders parameter specified - only returns limited results
                            if ($using:folders)
                            {
                                $fileList = $fileList | Select -First $using:folders
                            }

                            foreach ($file in $fileList)
                            {
                                $folderName = "$($file.Name.Split('\')[2])"
                                "folder name: $folderName" | Write-Verbose

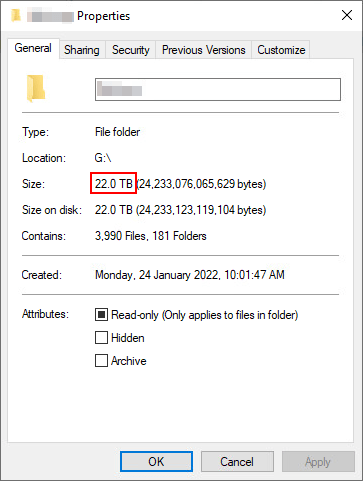

                                #get size of repo folder in windows
                                $folderSize = [int64]::Parse(($file.Group | Measure-Object -Property Length -Sum).Sum)
                                "folder size: $folderSize" | Write-Verbose

                                #blockstat tool can only process text files with up to 1024 paths - this splits them out into separate files prefixed with _2 _3 etc
                                if ($file.Group.Count -gt 1024)
                                {
                                    $tempArray = @()
                                    $numbers = 1..$file.Group.Count
                                    $groupOf = 1024-1
                                    $j = 1
                                    for ($i = 0; $i -le $file.Group.Count; $i += $groupOf)
                                    {
                                        $i | Write-Verbose
                                        $groupOf | Write-Verbose
                                        $group = $i + $groupOf
                                        $group | Write-Verbose
                                        "[$i..$group]" | Write-Verbose
                                        $numbers[$i..$group] -join "," | Out-String | Write-Verbose

                                        #create text file for each folder in fileList containing all file paths for that folder
                                        $file.Group[$i..$group].FullName | Set-Content -Encoding Unicode "$using:dir\logs\$driveLetter\$($folderName)_$($j).txt"

                                        #run blockstat tool against text file and output to xml file - use out-null to prevent "<file> does not exit" messages (happens when a file is stored in the text file but doesn't exist later on)
                                        Set-Location -Path $using:dir
                                        .\blockstat.exe -x -i "$using:dir\logs\$driveLetter\$($folderName)_$($j).txt" -o "$using:dir\logs\$driveLetter\$($folderName)_$($j).xml" | Out-Null
                                        $xml = [xml](Get-Content "$using:dir\logs\$driveLetter\$($folderName)_$($j).xml")

                                        #get folder savings value from xml file
                                        $folderSavings = [int64]::Parse($xml.result.totalshare.bytes)
                                        "folder savings: $folderSavings" | Write-Verbose

                                        #store values in temporary array
                                        $tempArray += $folderSavings

                                        "---" | Write-Verbose

                                        $i++
                                        $j++
                                    }
                                    #sum values from temporary array
                                    $folderSavingsSum = ($tempArray | Measure-Object -Sum).Sum
                                    $folderSavingsSum | Out-String | Write-Verbose

                                    #store values in array
                                    $totalSavings = @{repoServer = $using:repoLoop.ComputerName; volume = $driveLetter; folderName = $folderName; folderSize = $folderSize; folderSavings = $folderSavingsSum; TcpTestSucceeded = $using:repoLoop.TcpTestSucceeded; TcpError = $using:repoLoop.TcpError; sessionTestSucceeded = $using:repoLoop.sessionTestSucceeded; sessionError = $using:repoLoop.sessionError}
                                    New-Object PSObject -Property $totalSavings
                                    $totalSavings | Out-String | Write-Verbose
                                }
                                else
                                {
                                    #create text file for each folder in fileList containing all file paths for that folder
                                    $file.Group.FullName | Set-Content -Encoding Unicode "$using:dir\logs\$driveLetter\$folderName.txt"

                                    #run blockstat tool against text file and output to xml file - use out-null to prevent "<file> does not exit" messages (happens when a file is stored in the text file but doesn't exist later on)
                                    Set-Location -Path $using:dir
                                    .\blockstat.exe -x -i "$using:dir\logs\$driveLetter\$folderName.txt" -o "$using:dir\logs\$driveLetter\$folderName.xml" | Out-Null
                                    $xml = [xml](Get-Content "$using:dir\logs\$driveLetter\$folderName.xml")

                                    #get folder savings value from xml file
                                    $folderSavings = [int64]::Parse($xml.result.totalshare.bytes)
                                    "folder savings: $folderSavings" | Write-Verbose

                                    #store values in array
                                    $totalSavings = @{repoServer = $using:repoLoop.ComputerName; volume = $driveLetter; folderName = $folderName; folderSize = $folderSize; folderSavings = $folderSavings; TcpTestSucceeded = $using:repoLoop.TcpTestSucceeded; TcpError = $using:repoLoop.TcpError; sessionTestSucceeded = $using:repoLoop.sessionTestSucceeded; sessionError = $using:repoLoop.sessionError}
                                    New-Object PSObject -Property $totalSavings
                                    $totalSavings | Out-String | Write-Verbose
                                }
                                "-------" | Write-Verbose
                            }
                        }
                    }
                    else
                    {
                        #store values in array
                        $totalSavings = @{repoServer = $using:repoLoop.ComputerName; volume = $null; folderName = $null; folderSize = $null; folderSavings = $null; TcpTestSucceeded = $using:repoLoop.TcpTestSucceeded; TcpError = $using:repoLoop.TcpError; sessionTestSucceeded = $using:repoLoop.sessionTestSucceeded; sessionError = $using:repoLoop.sessionError}
                        New-Object PSObject -Property $totalSavings
                        $totalSavings | Out-String | Write-Verbose
                    }
                }
                #remove session
                Get-PSSession | Remove-PSSession
            }
            else
            {
                #store values in array
                $totalSavings = @{repoServer = $repoLoop.ComputerName; volume = $null; folderName = $null; folderSize = $null; folderSavings = $null; TcpTestSucceeded = $repoLoop.TcpTestSucceeded; TcpError = $repoLoop.TcpError; sessionTestSucceeded = $repoLoop.sessionTestSucceeded; sessionError = $repoLoop.sessionError}
                $refs += New-Object PSObject -Property $totalSavings
                $totalSavings | Out-String | Write-Verbose
            }
        }
    }
    end
    {
        "--------" | Write-Verbose
        $refs | Out-String | Write-Verbose
        "--------" | Write-Verbose
        "++++++++" | Write-Verbose
        ($refs | Group-Object repoServer) | Out-String | Write-Verbose
        $email | Write-Verbose
        #group results by repo server
        return Email-Results -results ($refs | Group-Object repoServer) -email $email
    }
}

function Email-Results
{
    [cmdletbinding()]
    param(
        [Parameter(Mandatory, ValueFromPipeline)]
        [array]$results,
        [Parameter(ValueFromPipeline)]
        [string]$email
    )
    begin
    {
        "^^^^^^^^^" | Write-Verbose
        $results | Out-String | Write-Verbose
        "^^^^^^^^^" | Write-Verbose

        #setup email preferences
        $from = "sender address"
        if ($email)
        {
            $email | Write-Verbose
            $to = $email
        }
        else
        {
            $to = "receiver address"
        }
        $smtpServer = "SMTP server"
        $port = 25
        $subject = "ReFS Repository Savings"
        #create email body in html - results formatted in table
        $body += "
        <style>
            body {font-family:Arial; font-size: 10pt;}
            table {border: 1px solid black; border-collapse: collapse;}
            tr.total {font-weight: bold;}
            th {border: 1px solid black; padding: 5px;}
            th.header {background: #bbbbbb;}
            th.pass {background-color: #15ff00;}
            th.fail {background-color: #fc0303;}
            th.fail2 {color: #fc0303;}
            td {border: 1px solid black; padding: 5px}
        </style>

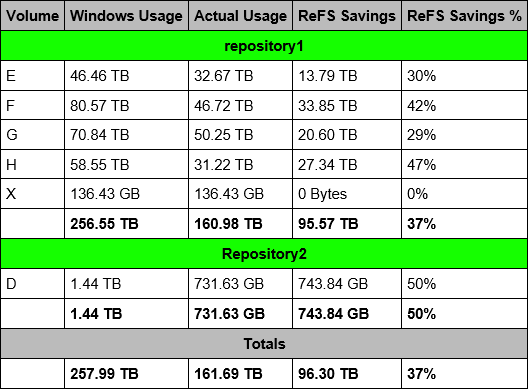

        <table>
            <tr>
                <th class='header'>Volume</th>
                <th class='header'>Windows Usage</th>
                <th class='header'>Actual Usage</th>
                <th class='header'>ReFS Savings</th>
                <th class='header'>ReFS Savings %</th>
            </tr>"
    }
    process
    {
        foreach ($result in $results)
        {
            "Repo server: $($result.name)" | Write-Verbose
            #colour code the server name cell based on connection result and returned volumes
            if ($result.Group.TcpTestSucceeded -eq $false)
            {
                $body += "
                <tr>
                    <th class='fail' colspan='5'>$($result.name)</th>
                </tr>
                <tr>
                    <th class='fail2' colspan='5'>$($result.Group.TcpError)</th>
                </tr>"
            }
            elseif ($result.Group.TcpTestSucceeded -eq $true -and $result.Group.sessionTestSucceeded -eq $false)
            {
                $body += "
                <tr>
                    <th class='fail' colspan='5'>$($result.name)</th>
                </tr>
                <tr>
                    <th class='fail2' colspan='5'>$($result.Group.sessionError)</th>
                </tr>"
            }
            elseif ($result.Group.TcpTestSucceeded -eq $true -and $result.Group.sessionTestSucceeded -eq $true -and $result.Group.volume -eq $null)
            {
                $body += "
                <tr>
                    <th class='fail' colspan='5'>$($result.name)</th>
                </tr>
                <tr>
                    <th class='fail2' colspan='5'>No ReFS volumes</th>
                </tr>"
            }
            else
            {
                $body += "
                <tr>
                    <th class='pass' colspan='5'>$($result.name)</th>
                </tr>"

                #group results by volume
                $volumeGroup = $result.Group | Group-Object volume
                foreach ($volumeGroupLoop in $volumeGroup)
                {
                    #get volume letter
                    $volumeLetter = $volumeGroupLoop.Group.volume[0]
                    "volume: " + $volumeGroupLoop.Group.volume[0] | Out-String | Write-Verbose

                    #sum values of all folder sizes
                    $volumeUsageSum = ($volumeGroupLoop.Group.folderSize | Measure-Object -Sum).Sum
                    $volumeUsageSum | Write-Verbose
                    Format-Size -SizeInBytes $volumeUsageSum | Write-Verbose

                    #sum values of all folder savings
                    $volumeSavingsSum = ($volumeGroupLoop.Group.folderSavings | Measure-Object -Sum).Sum
                    $volumeSavingsSum | Write-Verbose
                    Format-Size -SizeInBytes $volumeSavingsSum | Write-Verbose

                    #subtract sum of folder savings from sum of folder sizes
                    $volumeActualUsageSum = $volumeUsageSum - $volumeSavingsSum
                    $volumeActualUsageSum | Write-Verbose
                    Format-Size -SizeInBytes $volumeActualUsageSum | Write-Verbose

                    $body += "
                    <tr>
                        <td>$($volumeLetter)</td>
                        <td>$(Format-Size -SizeInBytes $volumeUsageSum)</td>
                        <td>$(Format-Size -SizeInBytes $volumeActualUsageSum)</td>
                        <td>$(Format-Size -SizeInBytes $volumeSavingsSum)</td>
                        <td>$(“{0:P0}” -f ($volumeSavingsSum / $volumeUsageSum))</td>
                    </tr>"
                    "----------" | Write-Verbose

                    #store sum of each volume value in new arrays - these contain the total value for all volumes on the repo
                    [double]$serverUsageSum += $volumeUsageSum
                    [double]$serverActualUsageSum += $volumeActualUsageSum
                    [double]$serverSavingsSum += $volumeSavingsSum
                }
                $body += "
                <tr class='total'>
                    <td></td>
                    <td>$(Format-Size -SizeInBytes $serverUsageSum)</td>
                    <td>$(Format-Size -SizeInBytes $serverActualUsageSum)</td>
                    <td>$(Format-Size -SizeInBytes $serverSavingsSum)</td>
                    <td>$(“{0:P0}” -f ($serverSavingsSum / $serverUsageSum))</td>
                </tr>"

                #store sum of each total server value in new arrays - these contain the total value for all volumes on all repos
                $totalUsageSum += $serverUsageSum
                "totalUsageSum: " + $totalUsageSum | Out-String | Write-Verbose
                $totalActualUsageSum += $serverActualUsageSum
                "totalActualUsageSum: " + $totalActualUsageSum | Out-String | Write-Verbose
                $totalSavingsSum += $serverSavingsSum
                "totalSavingsSum: " + $totalSavingsSum | Out-String | Write-Verbose

                #reset the server values ready for processing the next repo
                Clear-Variable -Name serverUsageSum, serverActualUsageSum, serverSavingsSum
            }
        }

        #only display sum of all server values if at least 1 server has a successful connection and contains volumes
        if ($results.Group.TcpTestSucceeded -like "*True*" -and $results.Group.sessionTestSucceeded -like "*True*" -and $results.Group.volume -ne $null)
        {
            $body += "
            <tr>
                <th class='header' colspan='5'>Totals</th>
            </tr>
            <tr class='total'>
                <td></td>
                <td>$(Format-Size -SizeInBytes $totalUsageSum)</td>
                <td>$(Format-Size -SizeInBytes $totalActualUsageSum)</td>
                <td>$(Format-Size -SizeInBytes $totalSavingsSum)</td>
                <td>$(“{0:P0}” -f ($totalSavingsSum / $totalUsageSum))</td>
            </tr>"
        }
    }
    end
    {
        $body += "
        </table>"
        $body | Out-String | Write-Verbose
        #email results
        return Send-MailMessage -From $from -To $to -Subject $subject -SmtpServer $smtpServer -Port $port -BodyAsHtml $body
    }
}

$credentials = Authenticate-Repo -prompt $false #authenticate with backup repository
Refs-Savings #execute blockstat on backup repositories
